References

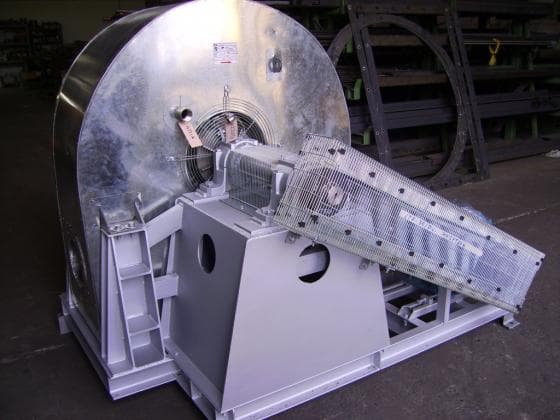

Ventilatore tipo/ Fan type: CTF 35/710 – 12 - (1 FAN)
Portata/Capacity: 4680 m3/h
Temperatura max/Max temp.: 820 °C
Pressione statica/Static pressure: 5120 Pa a 790°C
Pressione statica/Static pressure: 19227 Pa a 15°C
Potenza installata/Installed power: 22 Kw – 2 poles – 4100 RPM
Installazione/Application: Chemical Nitrogen – Ns. comm. 412/08
Luogo installazione/Client Inst.: Torino Italy
![](/_next/image?url=https%3A%2F%2Fs3.eu-south-1.amazonaws.com%2Fhydraimages%2F16431c7407e247a139df6c1cce54d42a65383492%2Fimage.jpeg&w=3840&q=75)
![](/_next/image?url=https%3A%2F%2Fs3.eu-south-1.amazonaws.com%2Fhydraimages%2Fb0a8b907f8ae02c71e7a7a7398094eb43fec93b3%2Fimage.jpeg&w=3840&q=75)
![](/_next/image?url=https%3A%2F%2Fs3.eu-south-1.amazonaws.com%2Fhydraimages%2Fae1f5a5109331b9e044fb3e5cffd6c7b15600b24%2Fimage.jpeg&w=3840&q=75)
![](/_next/image?url=https%3A%2F%2Fs3.eu-south-1.amazonaws.com%2Fhydraimages%2F69a80d3697b4ab9ed0838fffef39e53ac7f42412%2Fimage.jpeg&w=3840&q=75)
![](/_next/image?url=https%3A%2F%2Fs3.eu-south-1.amazonaws.com%2Fhydraimages%2F78fec903f2815850aeada7a686868ca23688b161%2Fimage.jpeg&w=3840&q=75)
![](/_next/image?url=https%3A%2F%2Fs3.eu-south-1.amazonaws.com%2Fhydraimages%2F1cd55b59cb512180f0f5f169d0332f5f0d86ae6f%2Fimage.jpeg&w=3840&q=75)
![](/_next/image?url=https%3A%2F%2Fs3.eu-south-1.amazonaws.com%2Fhydraimages%2F2ea32b500b201b592c2716c5e1aa9cd3de0c3988%2Fimage.jpeg&w=3840&q=75)
![](/_next/image?url=https%3A%2F%2Fs3.eu-south-1.amazonaws.com%2Fhydraimages%2Fc2b435453106daba1f13bc2e9dc313cde94751e6%2Fimage.jpeg&w=3840&q=75)

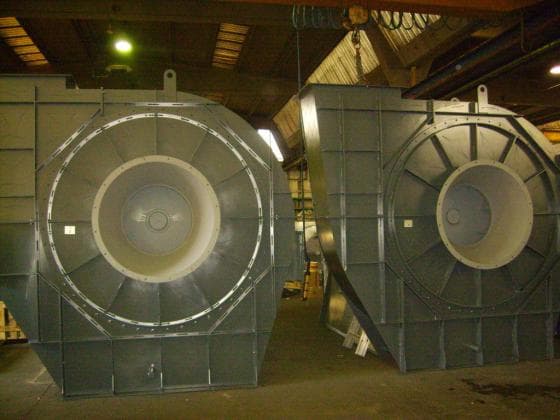

Ventilatore tipo/ Fan type: NFRA2000 – 7D - (3 FANS)
Portata/Capacity: 488.000 – 604.500 m3/h
Pressione statica/Static pressure: 5.900 Pa a 117°C – 5.400 Pa a 77°C
Pressione statica/Static pressure: 7840 Pa a 20°C – 6443 Pa a 20°C
Potenza installata/Installed power: 1.500 Kw – 6 poles – 60 Hz - 1190 RPM
Installazione/Application: Acciaieria/Steel works – Ns. comm. 087/09
Luogo installazione/Client Inst.: Taiwan

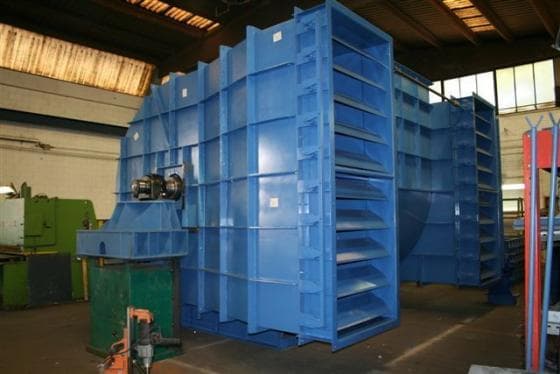

Ventilatore tipo/ Fan type: NFE 2250 – 8 - (2 FANS)
Portata/Capacity: 130500 m3/h
Pressione statica/Static pressure: 16500 Pa a 40°C
Pressione statica/Static pressure: 18394 Pa a 20°C
Potenza installata/Installed power: 900 Kw – 4 poles – 1490 RPM
Installazione/Application: Acciaieria/Steel works – Ns. comm. 550/08
Luogo installazione/Client Inst.: Linz - Austria
![](/_next/image?url=https%3A%2F%2Fs3.eu-south-1.amazonaws.com%2Fhydraimages%2F5ff1cc8c328d2d13d069961c76c3779ac04c9532%2Fimage.jpeg&w=3840&q=75)
![](/_next/image?url=https%3A%2F%2Fs3.eu-south-1.amazonaws.com%2Fhydraimages%2Fb40e103f384e0815d69b77f43b065c576626fc9c%2Fimage.jpeg&w=3840&q=75)
![](/_next/image?url=https%3A%2F%2Fs3.eu-south-1.amazonaws.com%2Fhydraimages%2F45ae97bc2d327930376e2e8cd33785aecdb85131%2Fimage.jpeg&w=3840&q=75)
![](/_next/image?url=https%3A%2F%2Fs3.eu-south-1.amazonaws.com%2Fhydraimages%2F1869f7918694100568406086ee48c09248f7a6d0%2Fimage.jpeg&w=3840&q=75)
![](/_next/image?url=https%3A%2F%2Fs3.eu-south-1.amazonaws.com%2Fhydraimages%2F3e0785ea1c7bab5f34723bf8c786ce84dd7e9145%2Fimage.jpeg&w=3840&q=75)
![](/_next/image?url=https%3A%2F%2Fs3.eu-south-1.amazonaws.com%2Fhydraimages%2F11593d19fd7c15540603dc0168e7407f1c28aa0b%2Fimage.jpeg&w=3840&q=75)
![](/_next/image?url=https%3A%2F%2Fs3.eu-south-1.amazonaws.com%2Fhydraimages%2Fc885d8171debb57865c26fcc55bec71d61047fa1%2Fimage.jpeg&w=3840&q=75)
Ventilatore tipo/ Fan type: NFE 2250 – 8 - (2 FANS)
Portata/Capacity: 123762 m3/h - 149825 m3/h
Temperatura max/Max temp.: 350 °C
Pressione statica/Static pressure: 10280 Pa a 184°C - 7700 Pa a 191°C
Pressione statica/Static pressure: 17783 Pa a 20°C - 15529 Pa a 20°C
Potenza installata/Installed power: 450 Kw – 4 poles – 1430 RPM
Installazione/Application: Fumes Dedusting – Ns. comm. 213/07
Luogo installazione/Client Inst.: Belgium
